Stainless Steel Plates

• Application
• Other, Construction, Mining, Industrial structures, Heavy machinery, Equipment manufacturing

• Chemical Composition
• C, Mn, Si, Cr, Ni, Mo (exact composition customizable/available upon request)

• Coating Type
• Optional Primer/Customer Requirement

• Color
• Metallic Silver/Grey

• Composition
• Alloyed with nickel, chromium, manganese, carbon, and other elements

• Corrosion Resistant
• Moderate to Good (not as high as 304/316 SS)

• Diameter
• N/A (Plate form)

• Dimension (L*W*H)
• Custom sizes available, Typical thickness 4mm to 100mm

• Finish Type
• Mill Finish/Shot Blasted

• Grade
• Fora 450

• Hardness
• 420-470 HBW

• Heat Resistance
• Yes

• Material Composition %
• Fora 450 proprietary alloy blend

• Material Grade
• 450

• Product Form
• Flat Plate

• Product Name
• Other, Fora 450 Stainless Steel Plates

• Recyclable
• Yes

• Shape
• Plate

• Size
• Custom sizes available

• Steel Product Type
• Other, Steel Plate

• Steel Standard
• Other, ASTM, EN, JIS or as required

• Steel Type
• Alloy Steel

• Surface
• Shot blasted and primed, Mill Finish

• Temper
• Quenched & Tempered

• Tensile Strength
• 1450 MPa min

• Thickness
• 4mm to 100mm

• Usage
• Wear-resistant applications, mining, heavy equipment, automotive, construction

• Weight
• Depends on dimensions and thickness

• Width
• Up to 2500 mm

• Application
• Other, Structural construction, engineering, industrial platforms, machinery manufacturing

• Chemical Composition
• High carbon, manganese, chromium, molybdenum, boron (exact percentages on request)

• Coating Type
• Typically uncoated, can be supplied with primer coating on request

• Color
• Metallic grey

• Composition
• Alloyed composition with manganese, chromium, boron, molybdenum

• Corrosion Resistant
• Yes, with proper maintenance and surface treatment

• Diameter
• N/A (plates are rectangular)

• Dimension (L*W*H)
• Standard or customizable; typical thickness range 5mm - 150mm

• Finish Type
• Mill finish

• Grade

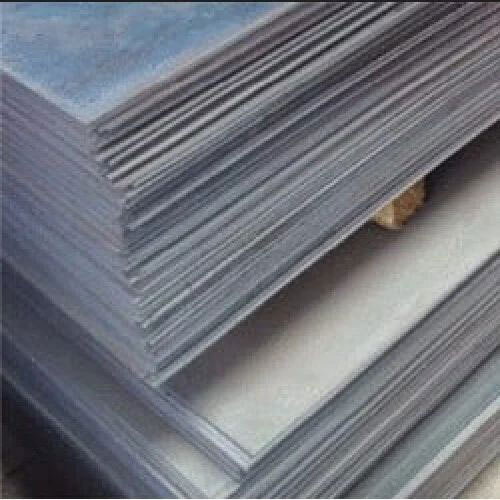

• Fora 500

• Hardness
• 480-540 HB

• Heat Resistance
• Yes

• Material Composition %
• Fe base, C 0.21-0.26%, Mn 1.00-1.60%, Cr 0.40-0.80%, Mo 0.25-0.45%, B 0.0015-0.005% (nominal)

• Material Grade
• Fora 500

• Product Form
• Flat Plate

• Product Name
• Other, Fora 500 Stainless Steel Plate

• Recyclable
• Yes, 100%

• Shape
• Plate

• Size
• Standard and custom sizes available

• Steel Product Type
• Other, Steel Plate

• Steel Standard
• Other, ASTMDIN standards (on request)

• Steel Type
• Alloy Steel

• Surface
• Smooth, mill finish

• Temper
• 500 (Heat-treated for high strength)

• Tensile Strength
• Min. 1,500 MPa (varies by thickness)

• Thickness
• 5mm to 150mm (other thicknesses on request)

• Usage
• Wear-resistant structural support, industrial heavy-duty applications

• Weight
• Varies as per dimensions and thickness

• Width
• Customizable as per order specification

• Application
• Other, Construction, Mining Equipment, Heavy Machinery, Wear-resisting Applications

• Chemical Composition
• Predominantly Fe, with alloying elements like C, Mn, Si, Cr, Ni

• Coating Type
• Uncoated (standard)

• Color
• Silver/Grey

• Composition
• Alloy Steel Composition with high wear resistance elements

• Corrosion Resistant
• Yes, moderate

• Dimension (L*W*H)
• As per order/specification

• Finish Type
• Mill Finish

• Grade

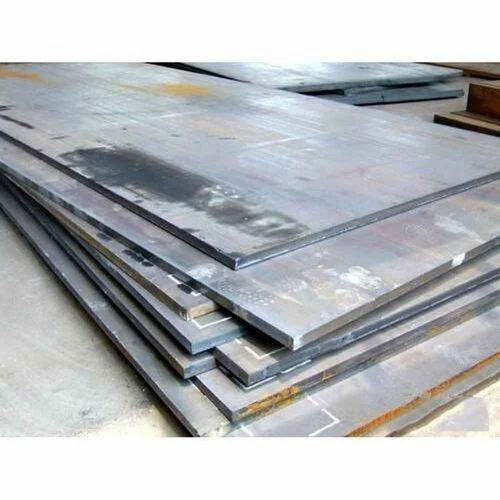

• Nicrodur 400

• Hardness
• 400 HBW

• Heat Resistance
• Yes

• Material Composition %
• C: 0.26-0.32%, Mn: 1.30-1.60%, Si: 0.70 max, Cr: 0.40-0.60%, Ni: 0.30 max, Balance Fe

• Material Grade
• 400 Series

• Product Form
• Plate

• Product Name
• Other, Nicrodur 400 Stainless Steel Plate

• Recyclable
• Yes

• Shape
• Other, Rectangular Plate

• Size
• Cut to size as required

• Steel Product Type
• Other, Heavy Plate

• Steel Standard
• Other, EN 10029, ASTM, DIN or as required

• Steel Type
• Alloy Steel

• Surface
• Hot Rolled, Mill Finish

• Temper
• Quenched and Tempered

• Tensile Strength
• 1250 MPa (min)

• Thickness
• Typically 3-100 mm

• Usage
• Industrial wear-resistant components

• Weight
• Varies as per dimension

• Width
• Customizable as per requirement

• Application
• Other, Construction, Mining, Machinery, Heavy Equipment, Wear Parts

• Chemical Composition
• C, Si, Mn, P, S, Cr, Mo, Ni (typical for Quard 450 steel)

• Coating Type
• Primer coated, shot blasted

• Color
• Metallic Grey

• Composition
• Alloy Steel with Abrasion Resistance

• Corrosion Resistant
• Medium

• Dimension (L*W*H)
• As per requirement, typically up to 12000 mm length

• Finish Type
• Smooth/Matte

• Grade

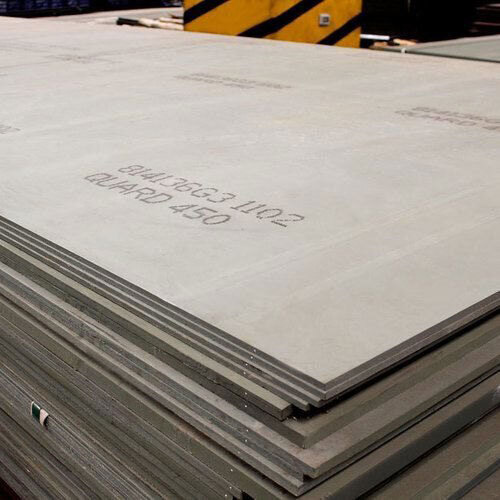

• Quard 450

• Hardness
• 450 HB (Brinell)

• Heat Resistance
• Yes

• Material Composition %
• Carbon: 0.20-0.30%, Manganese: 1.00-1.70%, Silicon: 0.20-0.80%, Chromium: 0.50-1.50%, Molybdenum: 0.25-0.60%, Nickel: 0.25-1.00%

• Material Grade
• Quard 450

• Product Form
• Sheet/Plate

• Product Name
• Other, Quard 450 Stainless Steel Plate

• Recyclable
• Yes

• Shape
• Other, Rectangular Plate

• Size
• As per order specification

• Steel Product Type
• Other, Plates

• Steel Standard
• Other, EN 10029, EN 10163, EN 10051

• Steel Type
• Alloy Steel

• Surface
• Shot Blasted, Primer Coated

• Temper
• Quenched and Tempered

• Tensile Strength
• 1350 MPa minimum

• Thickness
• 3 mm to 100 mm

• Usage
• Heavy-duty wear resistant applications

• Weight
• Varies with size and thickness

• Width
• 1500 mm to 3000 mm

• Application
• Other, Construction, Engineering, Mining Equipment, Machinery Structures

• Chemical Composition
• C: 0.20%, Si: 0.80%, Mn: 1.70%, P: 0.020%, S: 0.010%, Cr: 1.50%, Ni: 1.50%, Mo: 0.70%

• Coating Type
• Uncoated / Optional on request

• Color
• Metallic Gray

• Composition
• Low Alloy High Strength Steel

• Corrosion Resistant
• Yes

• Dimension (L*W*H)
• Custom Length x 1500-2500 mm Width x 6-100 mm Thickness

• Finish Type
• Mill Finish, Descaled

• Grade

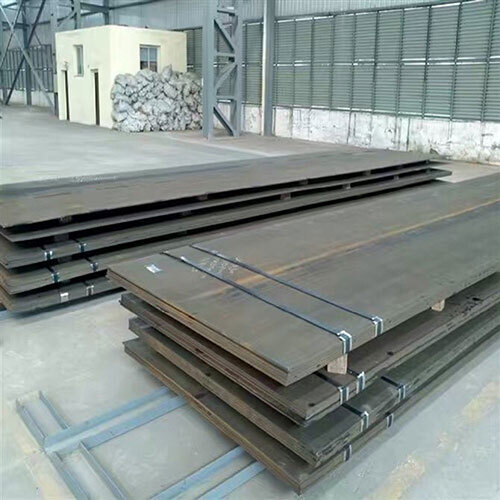

• S690QL1

• Hardness
• Up to 350 HBW

• Heat Resistance
• Yes

• Material Composition %
• Refer chemical composition section

• Material Grade
• S690QL1

• Product Form
• Plates

• Product Name
• Other, S690QL1 High Strength-Rust Proof Stainless Steel Plates

• Recyclable
• Yes

• Shape
• Other, Rectangular Plate

• Size
• Customized

• Steel Product Type
• Other, Hot Rolled Plate

• Steel Standard
• Other, EN 10025-6

• Steel Type
• Other, Alloy Steel (High Strength)

• Surface
• Rust Proof, Mill Finish, Descaled

• Temper
• Quenched and Tempered (Q+T)

• Tensile Strength
• 770 - 940 MPa

• Thickness
• 6 mm - 100 mm

• Usage
• Heavy Fabrication, Bridges, Offshore, Structural Components

• Weight
• As per plate size and thickness

• Width
• Range: 1500 mm - 2500 mm

• Application
• Other, Structural engineering, construction, machinery, bridge-building, mining equipment, heavy vehicles

• Chemical Composition
• Carbon, Manganese, Silicon, Phosphorus, Sulfur, Chromium, Nickel, Molybdenum, Boron, others

• Coating Type
• Uncoated, can be customized as per request

• Color
• Metallic Grey

• Composition
• As per EN 10025-6 standards

• Corrosion Resistant
• Moderate

• Diameter
• N/A for plates

• Dimension (L*W*H)
• As per requirement (commonly 6000 mm x 2000 mm x thickness)

• Finish Type
• Smooth, can be customized

• Grade
• S690QL

• Hardness
• BHN 200-300 (approx)

• Heat Resistance
• Yes

• Material Composition %
• As per standard, C 0.20%, Mn 0.80-1.80%, Si 0.80%, Cr 1.5%, Ni 2.0%, Mo 0.7%, others

• Material Grade
• S690QL

• Product Form
• Sheet/Plate

• Product Name
• Other, S690QL High Strength Stainless Steel Plate

• Recyclable
• Yes

• Shape
• Other, Flat Plate

• Size
• Standard sizes and custom cut sizes available

• Steel Product Type
• Other, High Strength Structural Steel Plate

• Steel Standard
• Other, EN 10025-6

• Steel Type
• Alloy Steel

• Surface
• Hot Rolled

• Temper
• Quenched and Tempered

• Tensile Strength
• 770-940 MPa

• Thickness
• 4 mm to 150 mm

• Usage
• Heavy engineering, load-bearing structures, offshore structures

• Weight
• Varies with dimension and thickness

• Width
• 1500 mm to 2500 mm

• Application
• Other, Automotive exhaust systems, heat exchangers, construction, and manufacturing

• Chemical Composition
• Fe, 10.5-11.7% Cr, 0.08% C, 1.00% Ni, 1.00% Si, 1.00% Mn, 0.045% P, 0.030% S

• Coating Type
• Uncoated, can be optionally coated or polished

• Color
• Silver/Grey Metallic

• Composition
• Stainless Steel, predominantly Chromium and Iron

• Corrosion Resistant
• Yes, good resistance to atmospheric and automotive exhaust corrosion

• Diameter
• N/A (Plate Shape)

• Dimension (L*W*H)
• As required, standard sizes such as 2000mm x 1000mm, thickness as specified

• Finish Type
• Mill, Polished, Brushed

• Grade
• 409

• Hardness
• 200 HB

• Heat Resistance
• Yes

• Material Composition %
• Cr: 10.5-11.7%, C: 0.08%, Fe: Balance

• Material Grade
• 409

• Product Form
• Flat Plate

• Product Name
• Other, 409 Stainless Steel Plate

• Recyclable
• Yes

• Shape
• Other, Rectangular Plate

• Size
• Custom sizes and standard sheets/panels

• Steel Product Type
• Other, Stainless Steel Plate

• Steel Standard
• Other, ASTM A240 / A240M, JIS G4304, EN 10088-2

• Steel Type
• Other, Ferritic Stainless Steel

• Surface
• 2B, BA, No.1, No.4, or as required

• Temper
• Annealed (Soft) or as specified

• Tensile Strength
• 380-620 MPa

• Thickness
• 0.5mm - 100mm (customizable)

• Usage
• Automobile exhaust, building, industrial appliances

• Weight
• Varies with dimensions and thickness

• Width
• Customized, commonly 1000mm, 1220mm, 1500mm, or as required

• Application
• Other, Wear-resistant equipment, mining, material handling, construction machinery

• Chemical Composition
• C (0.15%), Mn (1.00%), Si (0.70%), Cr (1.50%), Ni (0.25%)

• Coating Type
• Uncoated (can be customized)

• Color
• Grey Metallic

• Composition
• Low Carbon, Manganese, Chromium Alloyed

• Corrosion Resistant
• Yes, moderate corrosion resistance

• Dimension (L*W*H)
• 6000 mm x 2000 mm x 6-100 mm (Standard)

• Finish Type
• Smooth, Mill Finish

• Grade

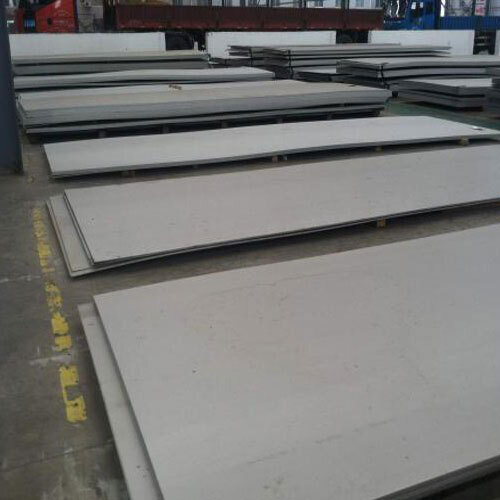

• Abrazo 400

• Hardness
• 370-430 HBW

• Heat Resistance
• Yes

• Material Composition %
• C 0.15%, Mn 1.00%, Si 0.70%, Cr 1.50%, Ni 0.25%

• Material Grade
• Abrazo 400

• Product Form
• Flat Plate

• Product Name
• Other, Abrazo 400 Stainless Steel Plate

• Recyclable
• Yes

• Shape
• Other, Rectangular Plate

• Size
• Customizable as per requirement

• Steel Product Type
• Other, Steel Plate

• Steel Standard
• Other, EN 10029 / EN 10051 / ASTM A480

• Steel Type
• Stainless Steel

• Surface
• Mill Finish

• Temper
• Quenched and Tempered

• Tensile Strength
• 1250 MPa - 1450 MPa

• Thickness
• 6 mm - 100 mm

• Usage
• Heavy-duty industrial applications

• Weight
• Depends on dimensions; approx. 480 kg to 8000 kg per plate

• Width
• 1500 mm - 2500 mm
